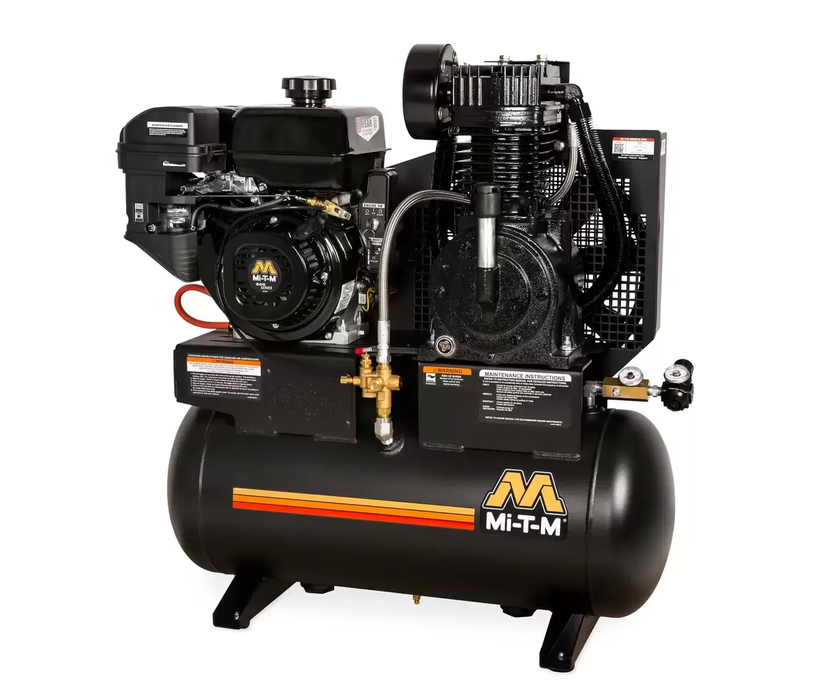

20-Gallon Two Stage Gasoline - Stationary - Electric Start
Mount in a service truck and you’ll have enough air power wherever you go. Built for optimum performance and efficiency, the tank gives you 20-gallons of air storage capacity.
Model #AM2-SM09-20ME | Stationary | Mi-T-M Engine w/ Electric Start
Compressor Pump: Cast iron compressor · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Frame: Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · 14-gauge powder coated two-piece belt guard
Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 1/2-inch fly wheel · Quality pilot valve unloader
Equipped with 150-PSI maximum rated regulator.
Equipped with electric start – battery, box and cables not included.
Specifications
-
CFM @ PSI: 17.2 @ 175
-
Displacement/ Engine: 300cc Mi-T-M OHV
-
Engine Idle Control: Cable Throttle
Weights & Dimensions
-
Net Weight: 313.00 lbs.
-
Shipping Weight: 363.00 lbs.
-
Length: 46.00 in.
-
Width: 26.00 in.
-
Height: 39.50 in.
